Wheel Play Detectors
Quickly and accurately check for wear
Quickly and accurately check for wear

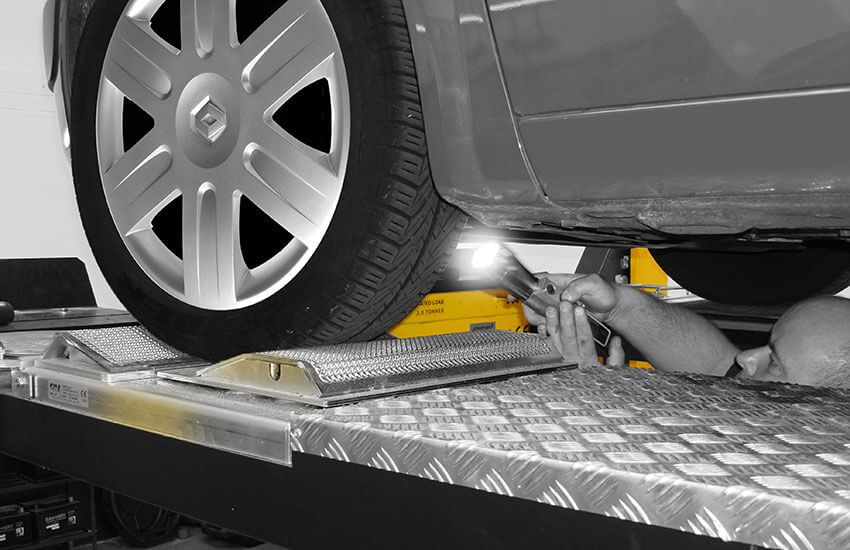

The wheel play detectors quickly and accurately check for wear
in a vehicle’s suspension and steering.
Moving independently of one another, each plate performs a different function operated by a robust remote control with an integrated LED torch.
The right hand plate applies load to the suspension components using a lateral movement to check for any play in the joints, whilst the left hand plate applies a turning action to determine any wear in the steering joint and steering rack.
Hydraulically operated and made from strong galvanised steel, the plates provide a long lasting construction and maximum power for any workshop that is in constant use.
Moving independently of one another, each plate performs a different function operated by a robust remote control with an integrated LED torch.
The right hand plate applies load to the suspension components using a lateral movement to check for any play in the joints, whilst the left hand plate applies a turning action to determine any wear in the steering joint and steering rack.
Hydraulically operated and made from strong galvanised steel, the plates provide a long lasting construction and maximum power for any workshop that is in constant use.

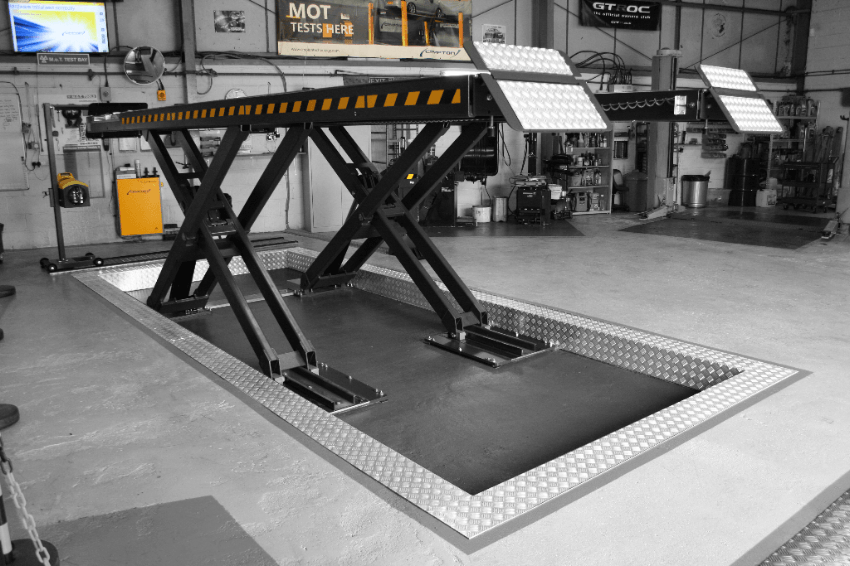

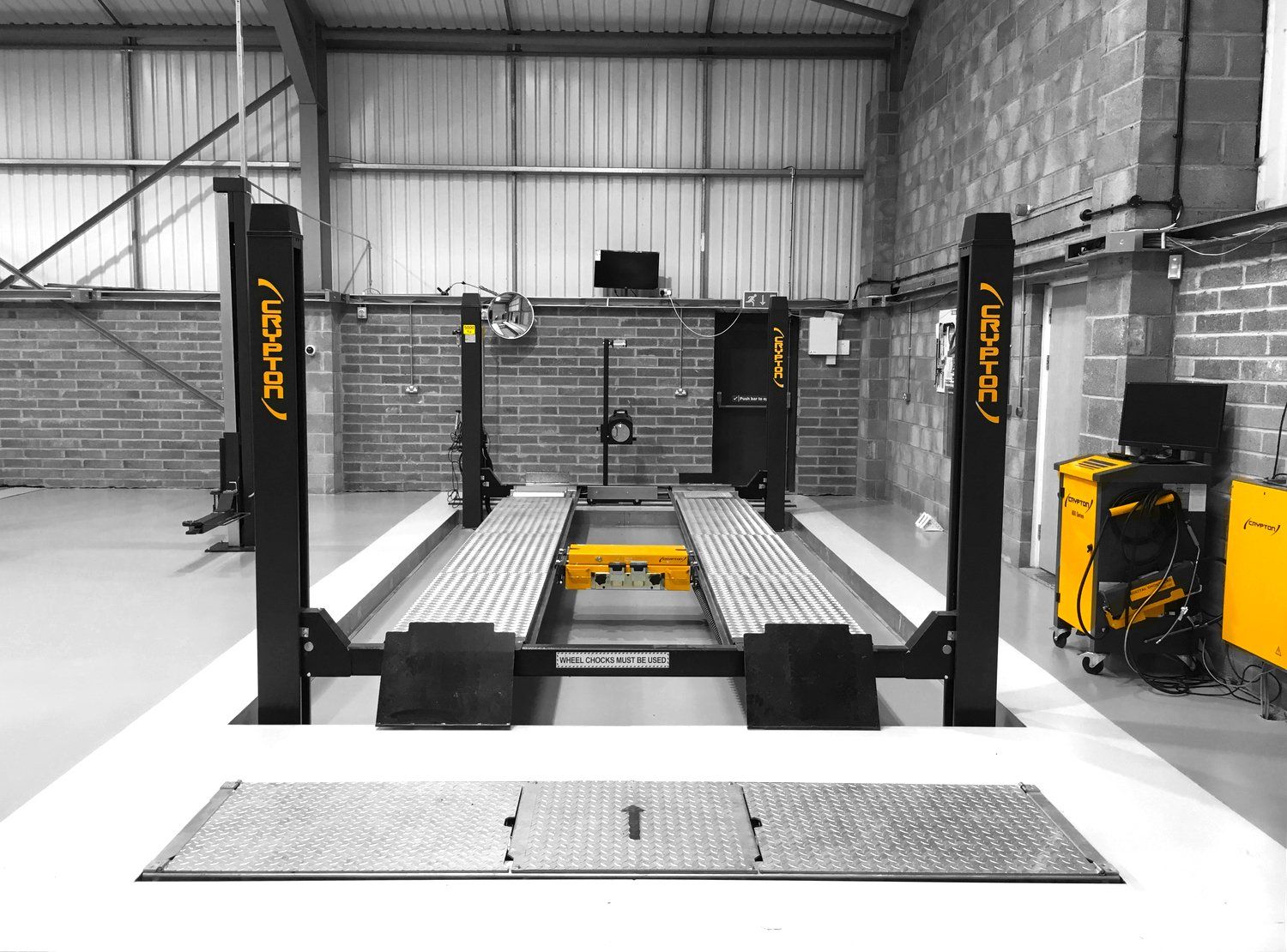

Specification | 4-Post | Scissor Lift | In-Ground |
---|---|---|---|
Max. capacity | 1300 Kg | 1300 Kg | 1300 Kg |
Max. stoke of the platform | + 40mm | + 40mm | + 40mm |
Max. angle of the platform | + 10° | + 10° | + 10° |
Max. thurst of each plate | 800 Kg | IV: 6kN VII: 8 kN | 8 kN |
Weight | 90 Kg | 85 Kg | 45 Kg |
Power | 3 Kw | 3 Kw | 3 Kw |
Max. Oil pressure | 185 Kg/cm2 | 123 Bar | 165 Bar |
