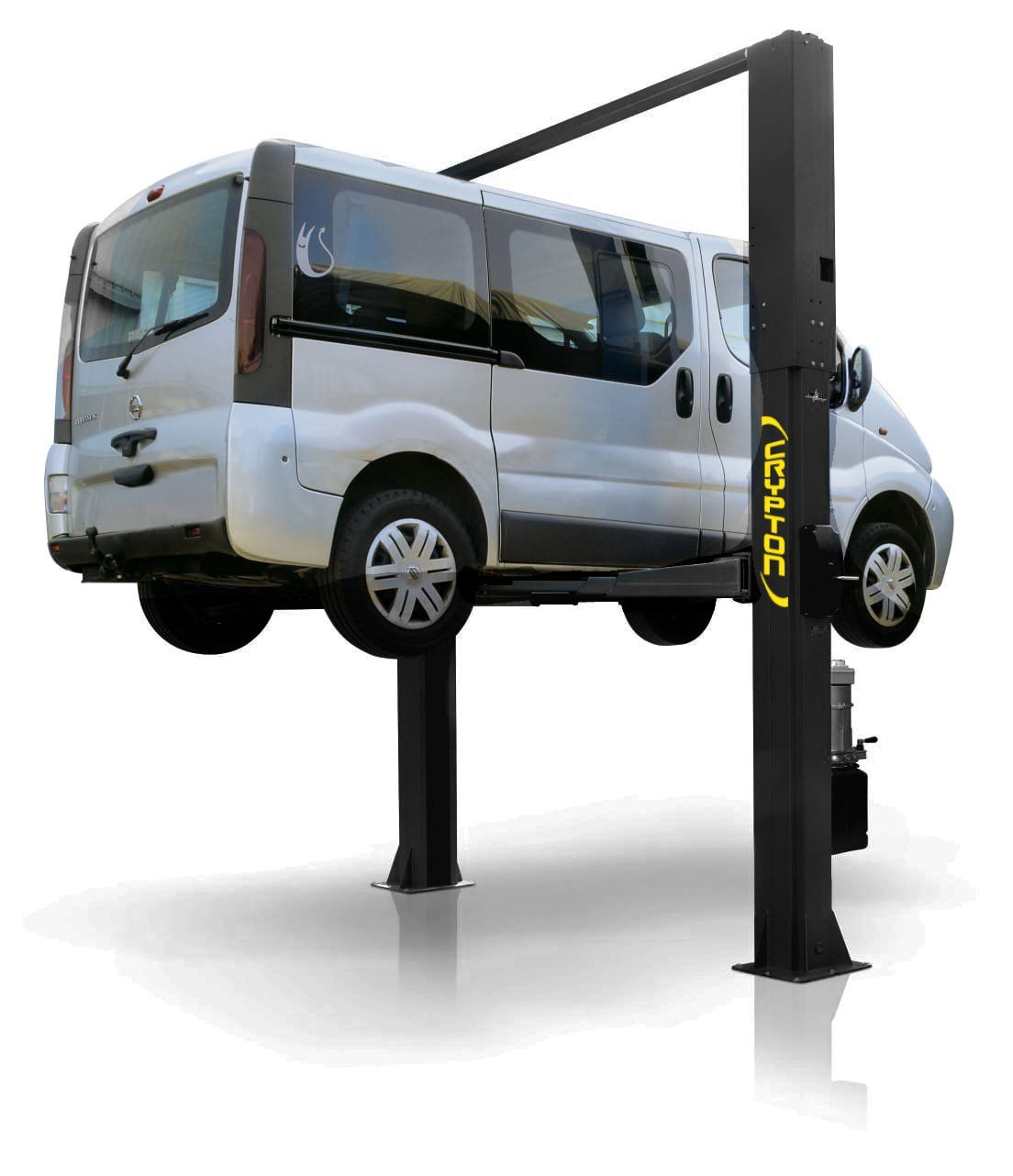

2-Post Lift 3T

Baseless with asymmetrical arms for maximum flexibility

This 2-post lift is electro-mechanically operated and has adjustable and asymmetrical lifting arms, which allows the arms to swivel 180°. This positions the vehicle off-centre to provide optimal door clearance to access the vehicle's interior. The arms are secured by an automatic locking device and the low-wear lifting nut is made of high-quality Nylatron.

Its baseless structure allows you to lift vehicles from the lowest lifting point. With its height-adjustable cable bridge, it offers flexible installation to fit into any vehicle workshop.

Its high-quality and robust construction has proven itself for over 20 years with more than 100,000 sold worldwide to assist mechanics in their everyday service tasks. What's more, the arms and columns are powder-coated to protect the lift against dirt and weather for a long-term investment.
  • Features

    ✓ Baseless for a low lifting point

    ✓ Adjustable asymmetric lifting arms

    ✓ Low wear Nylatron nut

    ✓ Adjustable width and height frame

    ✓ Twin motors for perfect synchronisation

    ✓ Resistant Poly-V belt

    ✓ LED display for simple and safe operation

    ✓ Manufactured with hard chrome cylinders

    ✓ Cylinders protected by galvanised covers

  • Brochures and Manuals

    Download 2-Post Lift (C2L3000E) Flyer

    Download 2-Post Lift (C2L3000E) Manual



  • Product Warranty

    We are pleased to supply and install with 3 years warranty (UK mainland only)

Specification C2L3000E
Lifting capacity 3000kg
Lifting height 2010mm
Lowest Lifting Point 95mm
Height of columns 2890mm
Overall height (adjustable) 3720-4120mm
Overall width 3000mm
Distance between columns 2460mm +/-10cm
Short arm 590-900mm
Long arm 940-1495mm
Lifting time 40 sec
Lowering time 40 sec
Power supply 3Ph, 400V, 50Hz
Motor 2x 1,5kW
Motor speed 1420 rpm
Sound level ≤70dB
Connection by customer Fuse 16amp (motor rated trip)
Concrete Quality: C20/25 Depth: 200mm
